Door Frame Metal Detector Manufacturers & Suppliers, Delhi NCR
We are Smart Safety Power of Realtime Biometrics, and door frame metal detectors, also called walk through metal detectors or metal detector gates, sit alongside our hand held metal detector range and our biometric attendance and access control hardware. Delhi is home base. Noida, Gurgaon, Kanpur, Mumbai, Bangalore and about 20 more cities are covered too.
A door frame metal detector is a fixed archway a person walks through, screening for ferrous and non-ferrous metal across the entire body without an operator needing to scan anyone manually. Unlike a hand held unit, which checks one person at a time on an operator's initiative, a walk through metal detector gate screens continuously as people pass, making it the right choice for any site with steady foot traffic through a single checkpoint.
Our Door Frame Metal Detector Range Includes:
- Single-zone door frame metal detectors for standard security checkpoints.
- Multi zone door frame metal detectors, typically 6-zone, 12-zone or higher.
- Airport metal detector gates built to higher sensitivity standards.
- Weatherproof door frame metal detectors for outdoor checkpoints.
- Door frame metal detectors with adjustable sensitivity.
- LED zone indicators that show exactly where on the body the alarm triggered.
- Door metal detectors with footfall counters.
- Battery backup models for locations with unreliable grid power.
Every unit we supply detects both ferrous and non-ferrous metal across the full body height, and multi zone models narrow down the alarm location instead of just sounding a generic alert.
Door Frame Metal Detector Models We Supply
Four configurations cover almost every checkpoint we quote for. Each one below is a real model we stock, call 9319502447 for current pricing on any of them.

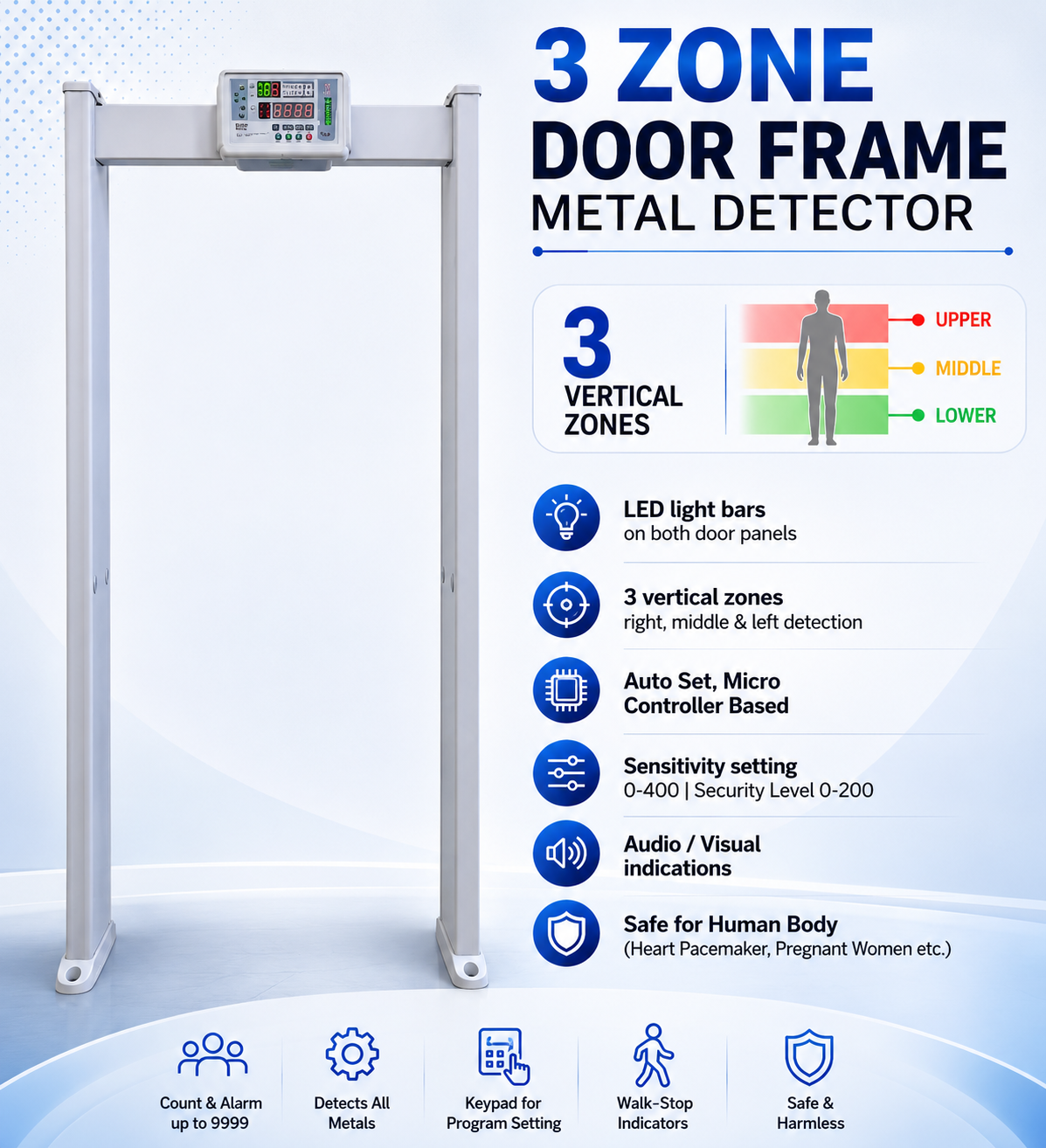

3 Zone Door Frame Metal Detector
- LED light bars on both door panels, auto-set microcontroller based.
- Security level 0-200, frequency level 0-50p, manual or automatic adjustment.
- Automatic passenger counter and alarm, up to 9,999 count.
- NABL tested at a government approved lab.
Best for lower-footfall checkpoints where a quick visual or hand held follow-up on alarm is manageable.

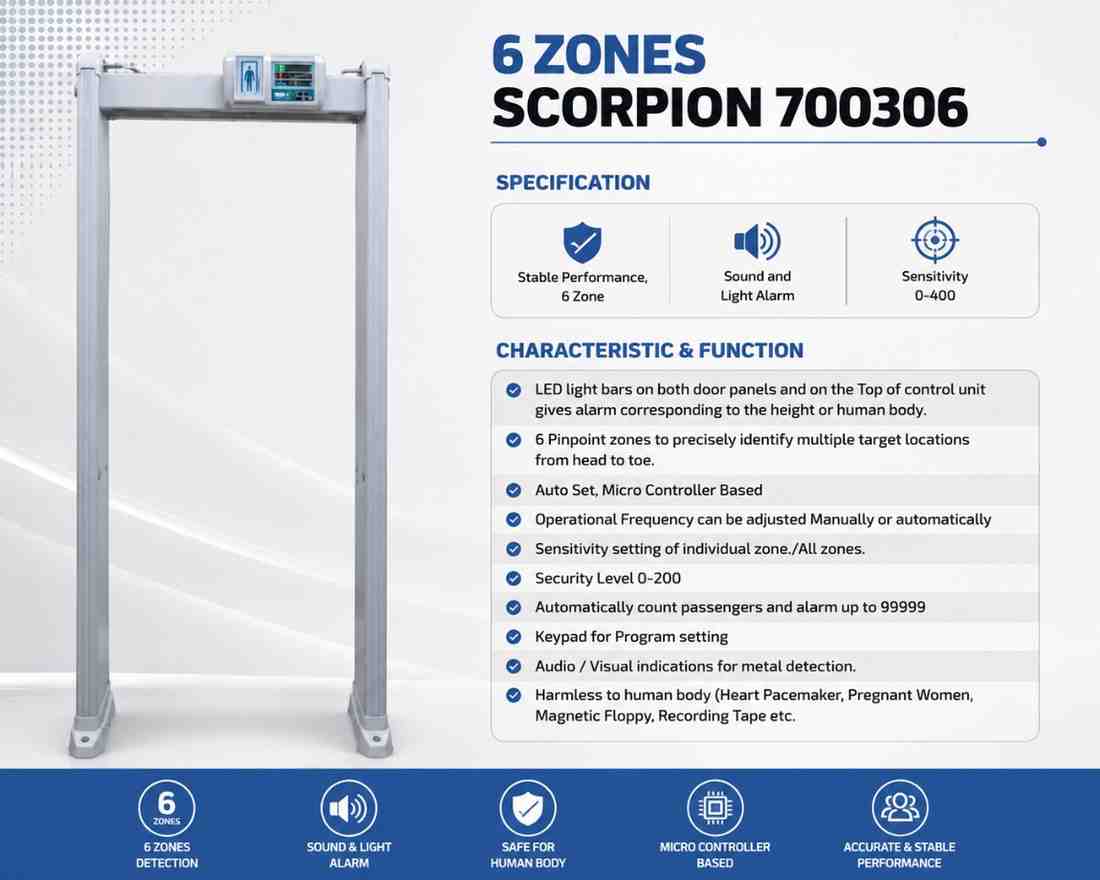

Scorpion 700306
- LED light bars on both door panels and on top of the control unit, alarm corresponds to height.
- Security level 0-200, sensitivity adjustable per zone or all zones together.
- Automatic passenger counter and alarm, up to 99,999 count.
- Optional battery backup and in/out/net counter available.
Best for offices, malls and event venues needing faster, more targeted secondary screening than a 3-zone unit.

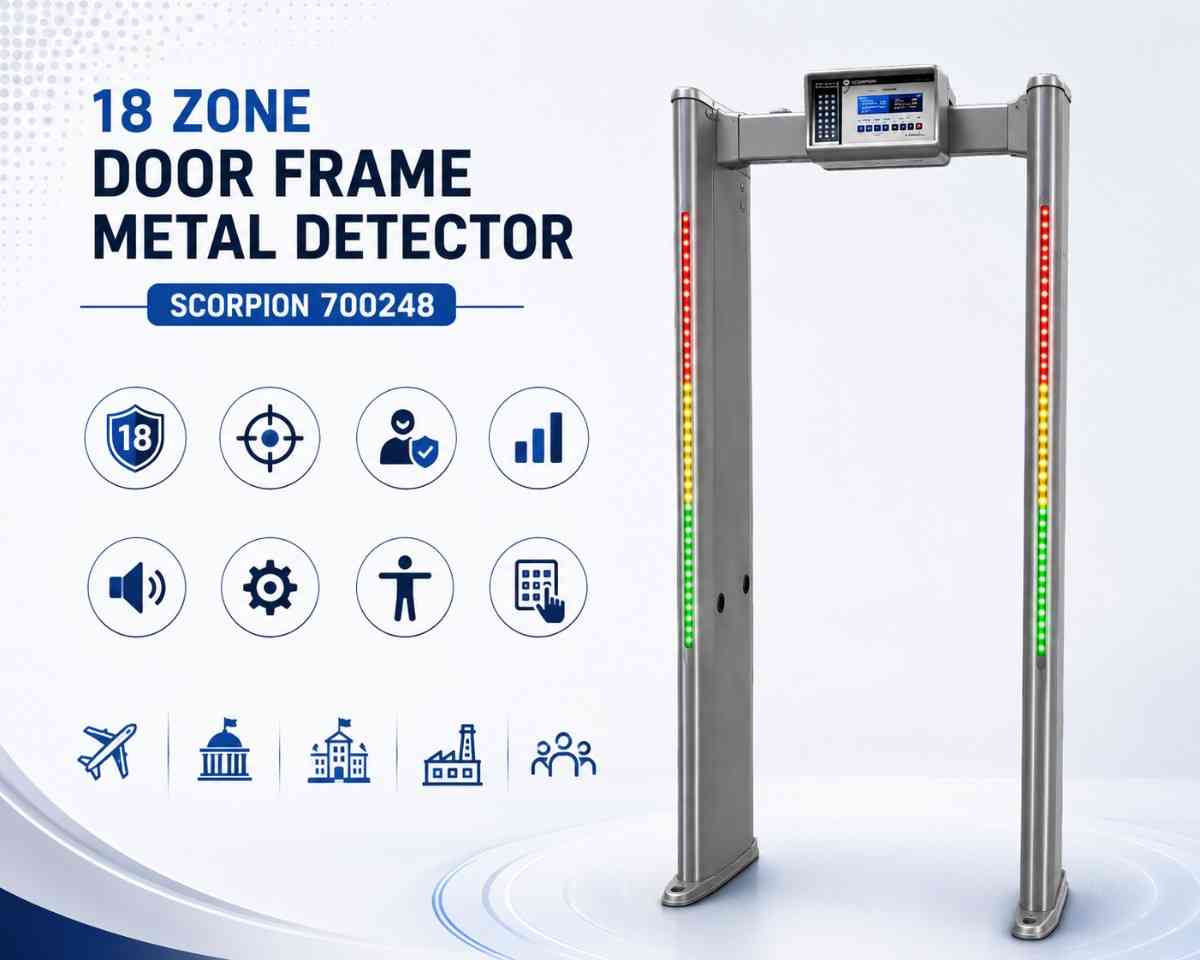

Scorpion 700248
- Security level 0-100, frequency level 0-99, manual or automatic adjustment.
- Automatic passenger counter and alarm, up to 99,999 count.
- Easy to mount and assemble, NABL tested at a government approved lab.
- Optional battery backup and intelligent camera system provision.
Best for checkpoints needing precise alarm location across the full body without the added virtual-zone layer.
Scorpion 700318
- LED light bars on both door panels and top of control unit, height-corresponding alarm.
- Virtual zone layer adds detection precision beyond the standard 700248 configuration.
- Automatic passenger counter and alarm, up to 99,999 count.
- Optional battery backup and in/out/net counter available.
Best for the highest-security checkpoints, government buildings, courts, banks, where alarm precision matters most.
| Specification | 3 Zone | Scorpion 700306 | Scorpion 700248 | Scorpion 700318 |
|---|---|---|---|---|
| Zone Count | 3 vertical zones | 6 pinpoint zones | 18 zones (6L, 6R, 6M) | 18 zones (6L, 6R, 6 virtual) |
| Sensitivity Setting | 0-400 per zone | 0-400 | 0-200 per zone | 0-400 |
| Security Level | 0-200 | 0-200 | 0-100 | Sensitivity level 0-400 |
| Frequency Level | 0-50 p | Manual/automatic adjust | 0-99 | Manual/automatic adjust |
| Passenger Counter | Up to 9,999 | Up to 99,999 | Up to 99,999 | Up to 99,999 |
| External Dimensions | 2160 x 820 x 350 mm (±5%) | 2180 x 840 x 440 mm (±10%) | 2160 x 810 x 340 mm (±10%) | 2180 x 840 x 440 mm (±10%) |
| Passage Size | Not specified | Not specified | 2010 x 720 x 280 mm (±10%) | Not specified |
| Net Weight | Around 30 kgs | Around 50 kgs | Around 30 kgs | Around 50 kgs |
| Power Input | AC 100V-260V, 50/60Hz | AC 90V-240V, 50/60Hz | AC 90V-240V, 50/60Hz | AC 90V-240V, 50/60Hz |
| Humidity | 95% non-condensing | |||
| Workplace Environment | -20°C to 55°C | -20°C to 55°C | -10°C to 55°C | 10°C to 55°C |
| Testing / Certification | NABL Tested, Government Approved Lab | |||
| Optional Accessories | Not specified | Battery backup, in/out/net counter | Battery backup, intelligent camera system | Battery backup, in/out/net counter |
How a Walk Through Metal Detector Gate Works?
The frame contains a series of coil arrays built into the vertical panels, generating a low-level electromagnetic field across the entire archway. As a person walks through, any metal object on their body disturbs that field, and the detector's receiver circuits pick up the disturbance and trigger an alarm, a sound, a light, or both depending on configuration.
Single-zone units treat the whole frame as one detection area, so an alarm just means something metallic passed through somewhere. Multi zone door frame metal detectors split the frame into separate vertical sections, commonly 6 or 12, each monitored independently. When someone triggers an alarm, the specific zone lights up, telling the security operator roughly where on the body to check rather than patting down the entire person.
Sensitivity calibration matters more here than on hand held units, because a walk through gate has to process continuous foot traffic without either missing real threats or triggering false alarms on belt buckles and phone cases constantly. Airport-grade units run tighter calibration and higher zone counts specifically because false alarm rates at that volume of daily foot traffic become an operational problem, not just an inconvenience.
Who Actually Needs a Door Frame Metal Detector?
Airports and transit hubs
High-volume, continuous pedestrian flow needs a fixed gate that screens everyone automatically, which a hand held unit alone can't keep pace with.
Government buildings and courts
Compliance requirements typically mandate walk through screening at public entry points, often with multi zone configuration for faster secondary checks.
Banks and financial institutions
Branch entrances use door frame metal detectors to screen every visitor without slowing down the line at busy hours.
Corporate offices and IT parks
Building lobbies pair a metal detector gate with the same biometric attendance system already tracking staff entry, screening visitors and staff through one checkpoint.
Schools and educational institutions
Gate security uses walk through screening at main entrances, particularly at larger campuses where a hand held check on every student would create unacceptable delays.
Event venues and stadiums
High footfall at gates during a short window before an event needs continuous screening throughput that a hand held wand can't match.
Why Clients Choose Us Over a Generic Metal Detector Manufacturer?
Most sellers deliver the frame and leave calibration to whoever sets it up on-site. We install, calibrate sensitivity to your actual foot traffic and false-alarm tolerance, and train your security staff on zone response. Recalibration and service later goes to the same people who set it up, not a new technician learning your site from scratch.
- Installed and calibrated by our own engineers. The team setting up your door frame metal detector is the same one running our biometric attendance and hand held metal detector installations.
- Genuine stock at every zone tier. Whether you need a basic single-zone unit or a 12-zone airport-grade configuration, we specify what you're actually buying and why.
- Support that stays local. Sensitivity drift, zone indicator faults, calibration adjustments, handled by engineers who show up, not a helpline reading from a script.
Frequently Asked Questions
What is a door frame metal detector used for?
A door frame metal detector, also called a walk through metal detector or metal detector gate, screens every person passing through an archway for concealed ferrous and non-ferrous metal, without an operator needing to scan each individual by hand. It's used at airports, government buildings, banks, schools and event venues wherever continuous pedestrian screening is needed.
What's the difference between a single-zone and multi zone door frame metal detector?
A single-zone unit treats the entire frame as one detection area, so an alarm just indicates something metallic passed through. A multi zone door frame metal detector, usually 6-zone or 12-zone, splits the frame into separate sections and pinpoints roughly where on the body the alarm triggered, speeding up secondary screening.
What makes an airport metal detector gate different from a standard security metal detector?
Airport metal detector gates typically run higher zone counts, tighter calibration tolerances, and often require compliance documentation specific to aviation security standards. A standard commercial door frame unit isn't automatically interchangeable with airport-grade equipment, even though the two can look similar from outside.
Can a door frame metal detector be installed outdoors?
Yes, if you choose a weatherproof-rated unit. A standard indoor commercial frame isn't built for continuous outdoor exposure, so factory gates and outdoor event entrances should specifically request the weatherproof configuration.
